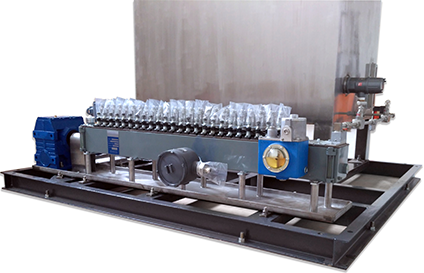

EDM high pressure flushing oil & drip irrigation system provide ture modularity that a wide choice of standard modular components helps you meet application requirements more exactly without the added costs of a custom system.The system could provide a pump to point flushing and drip irrigation to the instrument system.EDM has a very professional technical team and EDM is different to them that we can customize products according to customer requirements.
EDM provides a liquid level float switch to help high pressure flushing oil injection fuel tank to control the liquid level. When the casing is full of oil, float switch will automatically stop refueling, and when the body flush fluid levels is lower than the highest point, float switch will sink and refuel the oil automatically.
EDM could provide two types of gearbox (transmission), inner and outer respectively. Gearbox are available from direct drive to a reduction ratio of 200:1 to 400:1.Options provide left- or right-hand end of reservoir mounting, end or rear rotary drives, end ratchet drives and gear reducers.
EDM can provide three types of high-pressure pump, size of 3/16" 1/4" 3/8" respectively.

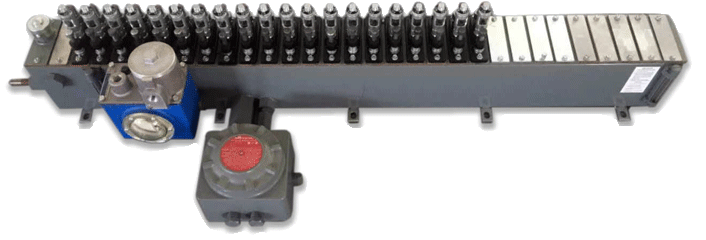

The reservoir capacities are available to hold from 2 to 44 pints and accommodate from 1 to 31 pumps. Blank cover assemblies are available for unused pump stations.
Three shaft rotation alarm options are available. These options use one pump station on the reservoir and are available with SPDT or DPDT switches or without a switch.
Low level alarm switch can transmit signal to DCS system, and it's much more convenient operation to personnel work.
Explosion proof enclosures for all area classifications.Adjustable thermostat -100oF to +600oF.
hree-phase motors are available at ratings of 1/3,1/4 and 1/2 hp, for 380 volt, an explosion-proof, TEFC or TENV configuration. Some motor configurations are available foot-mounted and or face-mounted.
EDM could provide a proven, cost-effective way to assemble customized flushing oil & drip irrigation system that meet specific requirements by using standard modular components.
EDM high pressure flushing oil & drip irrigation system could increase opportunities to standardize flushing oil & drip irrigation system components and reduce the maintenance and service costs.
EDM high pressure flushing oil & drip irrigation system saves your system costs and lead time.
1.One piece steel pump body.
2.Modular cast iron cylinder assembly.
3.Pyrex sight glass with protective housing.
4.Hardened steel rocker arm.
5.Optional hardened steel roller rocker arm is available for high pressure application.
6.Weatherproof construction.
7.Suitable for use with petroleum & synthetic system.
8.3/16", 1/4" or 3/8" plunger sizes available.
9.Box suction pumps(vacuum feed).
10.Pressurized suction pumps with sight glass.
11.Pressurized suction pumps without sight glass (blind sightfeed).
