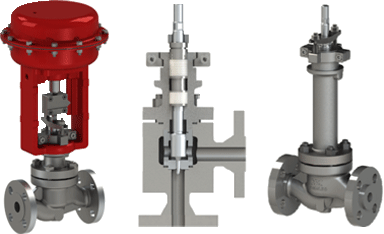

Design Characteristics:
■Top&Cage Guided
■High Capacity with Low Recovery
■High Allowable Pressure Drop
■Tight Shutoff
■Wide Temperature range
■High Performance materials
■Simple, High performance trim package
■Anti-cavitation and Low Noise Capability
Valve Specification:
■Globe: Globe,Angle & Y-Globe.
■Size :1/2" to 12" / Over 12"(option)
■Pressure Rating:ANSI 150# to 4500#
■Process Connections:FF, RF, RTJ, BW, SW
■Bonnet:Plain, Extension, Bellows Seal
■Characteristics:Linear, EQ, ModifiedEQ
■Rangeability:30:1, 50:1, 100:1
■Seat Leakage: ANSI Class IV V VI
The combination of trim designs,actuator stability,shutoff capabilities,and precise valve positioning offers optimum control performance.EDM’s S-Series is also available in various materials, pressure ratings, and end connections offering a complete high-performance
valve platform.The simple construction and flexible design features of the S-Series help to lower maintenance costs and extends product life cycles. This versatile product line helps customers to solve a multitude of
control valve application problems using a common platform.
■Globe: Globe,Angle & Y-Globe
■Size : 2" to 26" / Over 12"(option)
■Pressure Rating:ANSI 150# to 4500#
■Trim Design : Balanced
■Process Connections:FF, RF, RTJ, BW, SW
■Bonnet:Plain, Extension, Bellows Seal
■Characteristics:Linear, EQ, ModifiedEQ
■Rangeability: 30:1, 50:1, 80:1, 100:1. / Option 800:1
■Seat Leakage: Class IV V VI
■Body&Bonnet:A216-WCB,A217-WC6, A217-WC9, A217-C12A, A105, A182-F11, F22, F91, F92, Inconel, A351-CF8, 8M,CF3,3M,Monel,Duplex,Al-Bronze,Alloy Hastelloy, Titanium, Tantalum
EDM C-series is designed to be used for compressible and non-compressible fluid service applications in valve size ranging from 2" through 26" in pressure classes 150Lbs to 4500Lbs. The C-series valves are supplied with either direct or reverse acting actuators plus a number of optional accessories to satisfy most final control element requirements. Our C-series valves also permit interchangeability of actuators and trims within certain valve sizes for simplifying control changes in the field. This feature combined with a wide selection of standard and optional trim assemblies provides optimum control and has proven to be economical should field conversion be necessary.
Specification:
■Body Type 3-Way Globe Valve
■Flow Direction Mixing / Flow to Open
■Size :3/4" to 16"
■Trim Type Standard : Top & Port Guided Ported Plug
■Special:Top & Bottom Guided Contoured Plug
■Trim Size:Full Capacity Only
■Characteristic Linear, EQ
■Cv Ratio 50:01:00
■Seat Leakage Class Standard / FCI 70-2 Class III. Optional / FCI 70-2 Class IV
■Bonnet Type:Stud Bolted Bonnet
